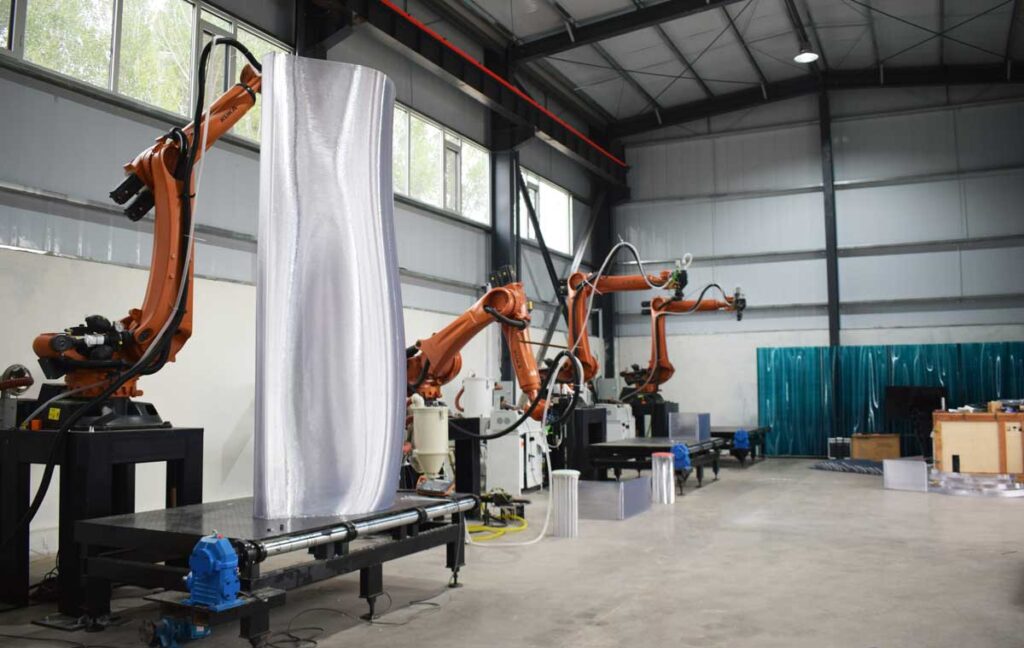

ROBOT ARM PELLET 3D PRINTING SOLUTION
Solution

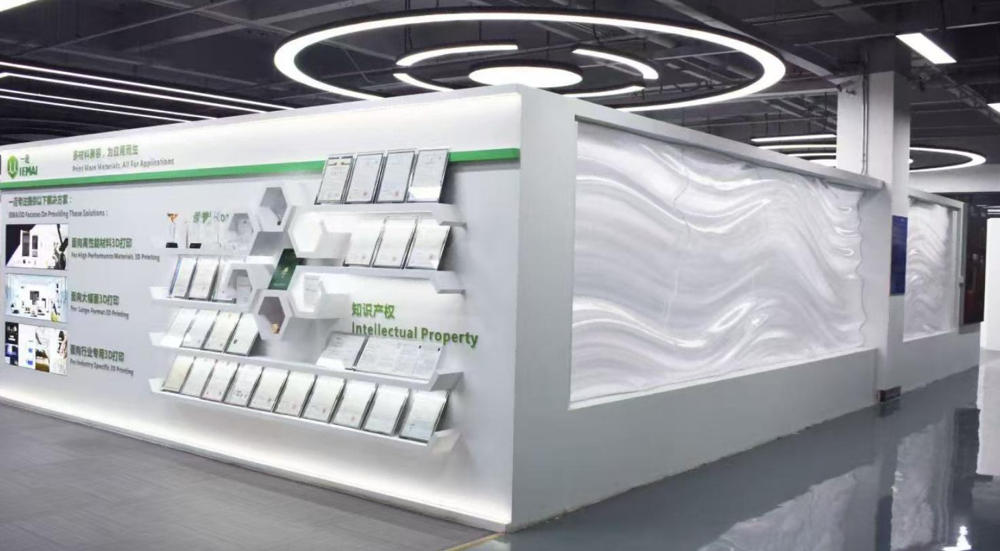

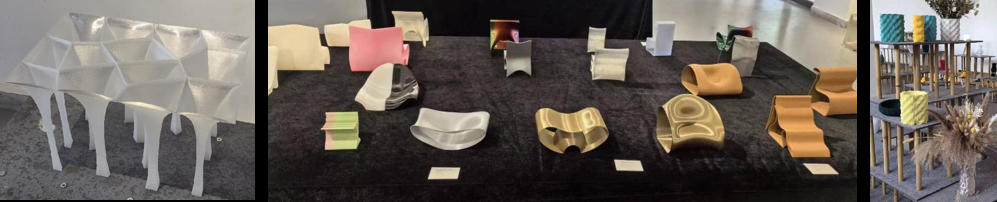

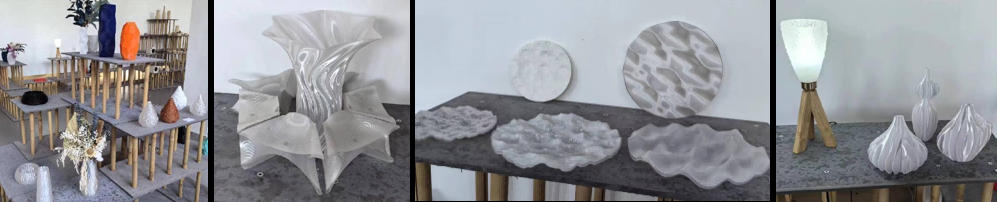

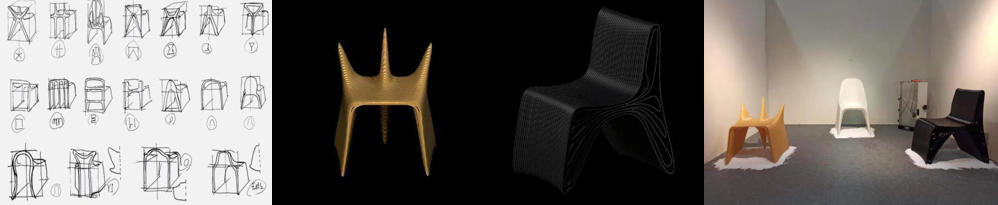

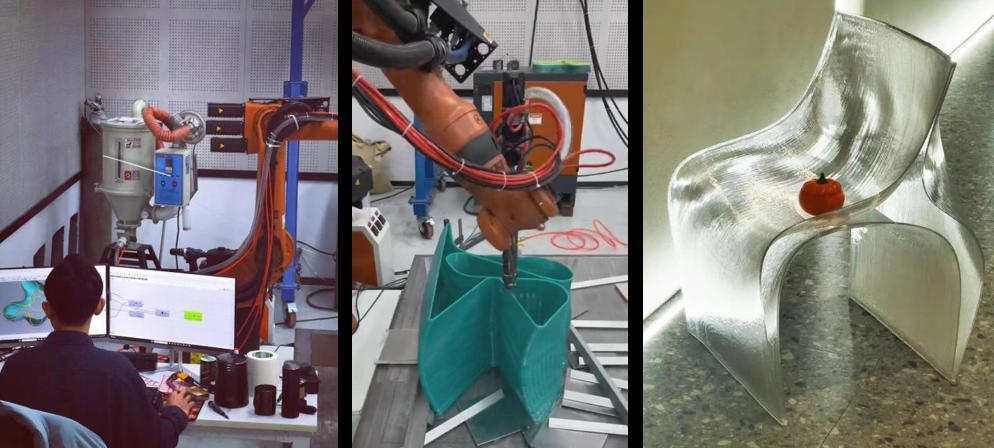

Lab

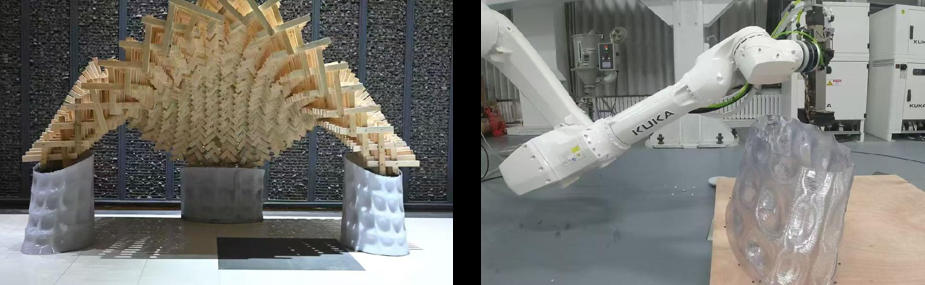

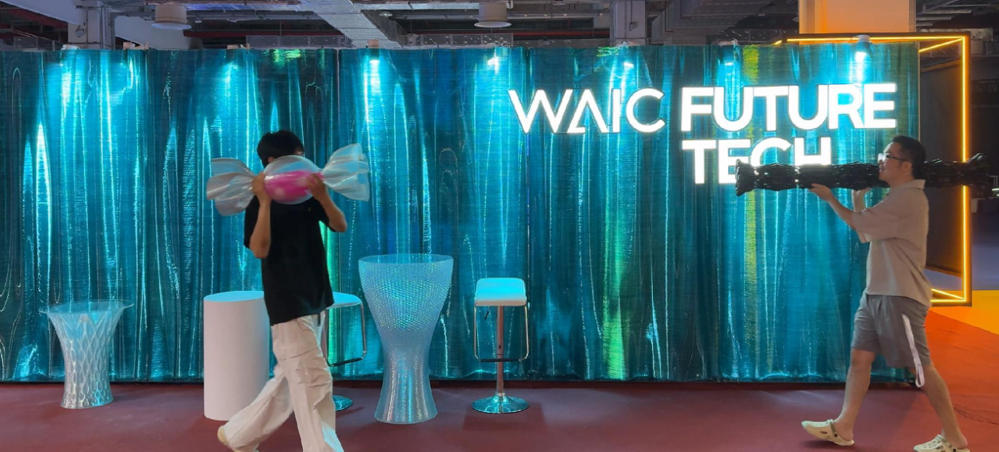

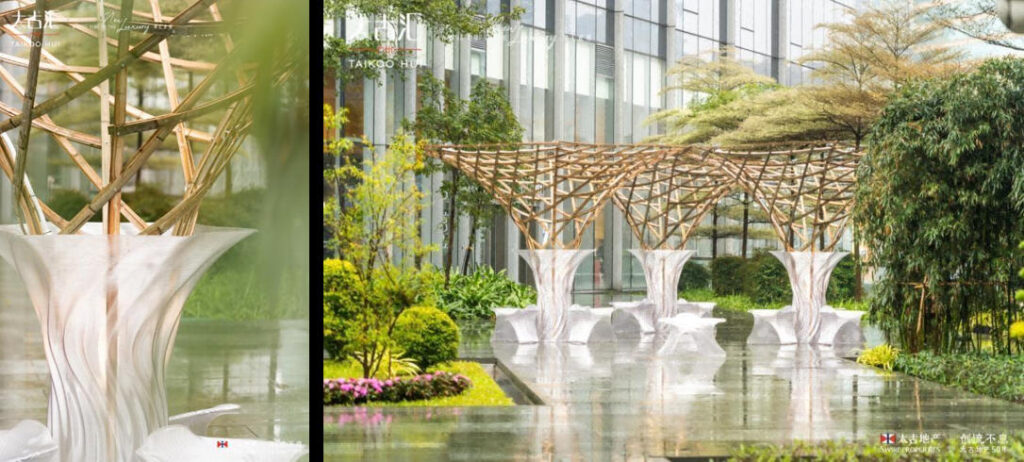

Cases

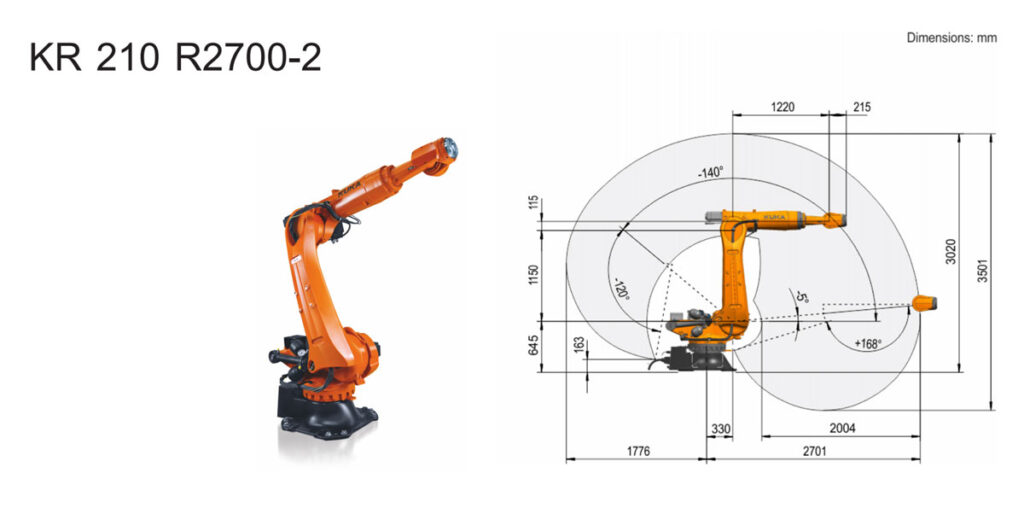

Arm Parameters
(Unit: mm)

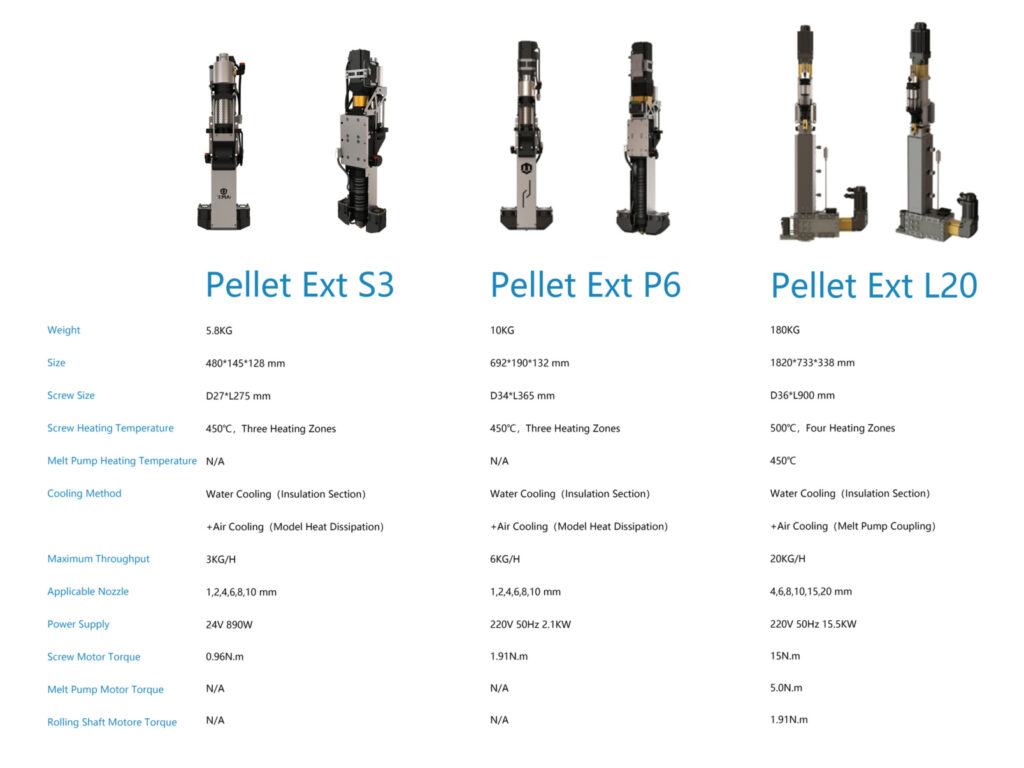

Pellet Extruder Technical Parameters
Model: Pellet Ext P6
Weight: 9.5kg
Size: H670 x W190 x L127 mm
Screw Size: D34 x L357 mm
Screw Treatment: 38CrMoA1A+Nitriding Treatment
(L/D): 10.5:1
Max. Motor Torque: 5.4N.m
Gear Ratio between Motor and Screw: 1:50
Max. Screw Speed: 60 (r/min)
Installable Equipment: Robot Arm & Frame Type
Heating Zones: 3
Cooling Zones: 2 (Insulation Section & Model Cooling)
Temperature Control: PID
Cooling Method: Water Cooling (Insulation Section) + Air Cooling (Model Heat Dissipation)

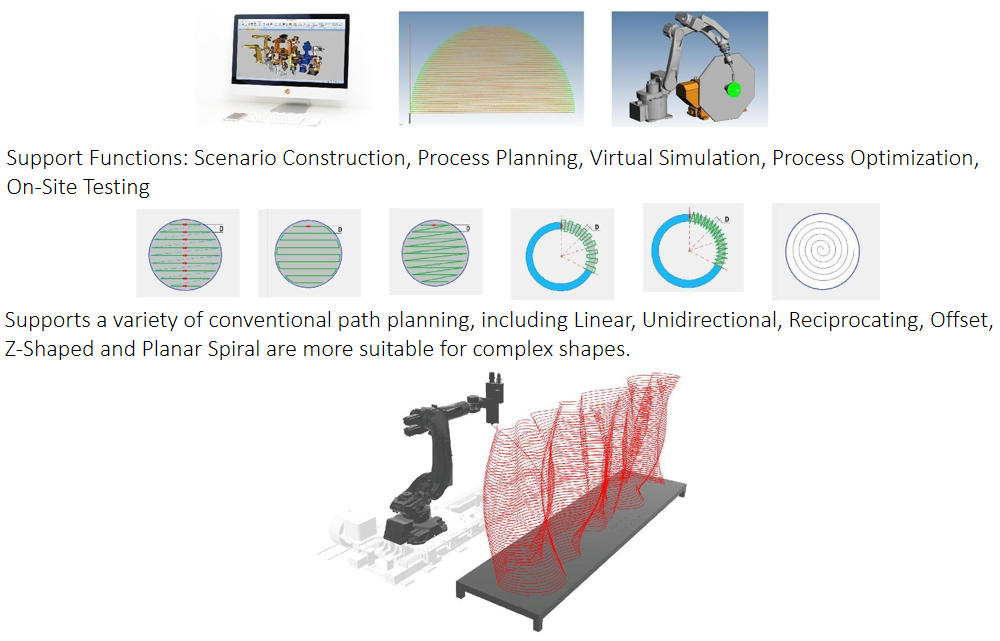

Software: IEMAI 3D EXPERT
Power Servo Motor: STEPCNC
Servo System: 0.6 KW
Total Power: 2.1KW
Extruder Control: Servo Motor+ Planetary Reducer
Max. Throughput: 6 KG/H
These Robot Arm Pellet 3D Printing Solutions will provide you excellent gigantic products print without build limitation.
Depending on your budget and needs, you can choose the most appropriate solution.
If you need some professional advice, please feel free to contact us.
