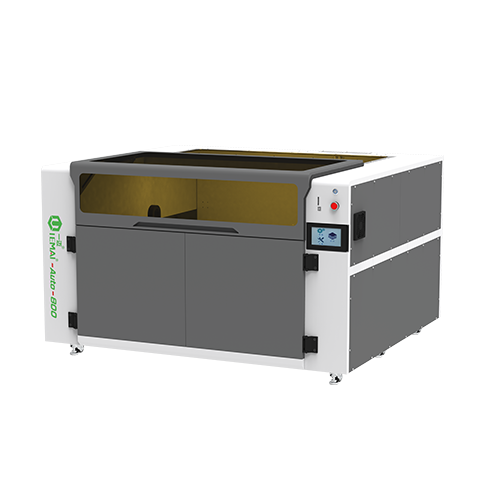

YM-AUTO-800
Build Volume：800 × 800 × 100 mm
Printing Temperature： Up to 275°C
Hot Bed Temperature:：Up to 80°C
Extrusion System：Two In One Extruder
Function: UV Light + Manual Gluing
Material Supported: Specialized Filament For Channel Letter, Light Pass And Non Light Pass Filament
Specification
Principle: Fused Filament Fabrication (FFF)
Filament Diameter: 1.75 mm
Recommended Layer Thickness: 0.2 – 0.4 mm
Position Accuracy: X/Y: 12.5 µm Z: 1.25 µm
Printing Speed: 0 -150 mm/s
Noozle Diameter: 0.4 mm (Standard), 0.6 mm, 0.8 mm, 1.0 mm (Optional)
Heated Bed Material: Silicon
Air Filter: Activated Carbon Filter (Optional)
Slicing Software:IEMAI3D ADV(2D to 3D)
Other Software: Cura, Simplify3D
Printing Platform: Glass
File Type: SVG, NC, DXF, STP, GCODE
Data Transmission: SD Card, WIFI, USB
Operating System: Windows 64 Bit
Machine Size:1205× 1350× 800 mm
Packing Size: 1315× 1450 × 965 mm
Net Weight:190KG
Gross Weight: 230KG
Suggest Operating Environment: 15-30 °C, Relative Humidity 10-90 %, No Condensation
Storage Temperature:25-55 °C, Relative Humidity 10-90 %, No Condensation
Features
Power Failure Recovery
Filament Detection
Automatic Switch-Off
Manual Arcylic Gluing Function
Automatic Leveling
Dual Colour Printing
2D to 3D Software
UV Light At Base
YM-AUTO-800 is specially designed for channel letter 3d printing, with a temperature of 275°C extruder temperature and 80°C hot bed temperature. It can support most of the specialized advertising filament on market, having a two in one extruder, allowing it to have simple maintenance and printing two colour in one channel letter.
Printing Case
